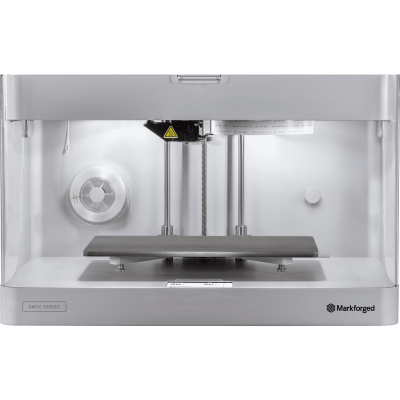

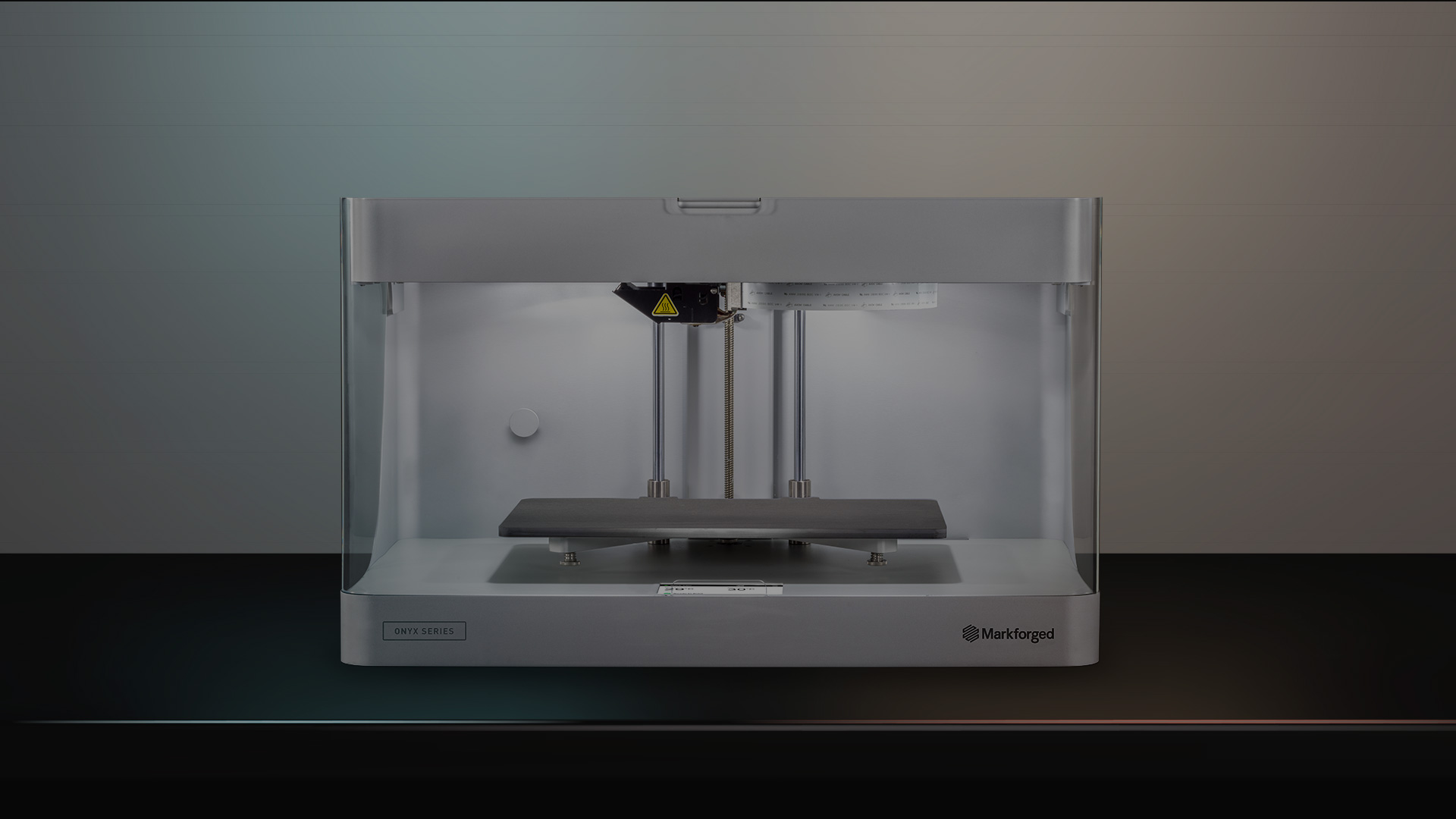

Markforged Onyx Pro Desktop 3D Printer

A hardworking 3D printer that prints reinforced parts with Continuous Fiberglass

Markforged Continuous Fiberglass material

Continuous Fiberglass Printing

The Markforged Onyx Pro prints Continuous Fiberglass-reinforced parts on a desktop-sized printer. These incredibly strong parts are capable of replacing machined aluminum parts.

Long-Lasting

The Markforged Onyx Pro can reliably print parts for thousands of hours with a unibody aluminum chassis and precision-machined components.

Print Beautiful Parts

With Markforged’s versatile Onyx material, the Onyx Pro prints parts with best-in-industry surface finishes.

Production Management and 3D Printing Software in One System

To create a part using Eiger, first design it, then upload it into the software. Next, slice it using Onyx with the slicing software. Finally, reinforce it with Continuous Fiberglass. Additive Manufacturing has never been so easy.

Try Eiger

Markforged Eiger software on a laptop screen displaying a fiberglass part model

Diverse Material Options

From the diverse Onyx offering chemical and heat resistance to the color options of Precise PLA, the Markforged Onyx Pro gives you great material options to print beautiful, high-performance parts.

Onyx Pro Materials

Print parts 10x more substantial than plastic with the Markforged Onyx Pro 3D printer.

3D Printer
System Details

3D Printer

Build Volume

Width: 320 mm
Depth: 132 mm
Height: 154 mm

Printing Process

Continuous Fiber Reinforcement (CFR)

Z Layer Resolution

100 μm - 200 μm

Printing Media

Composite Base Filaments, Continuous Fibers

Internal Part Geometry

Closed Cell Infill with Continuous Fiber Reinforcement

Print Bed

Precision Ground Composite

System Details

Markforged Onyx Pro

The Markforged Onyx Pro is an advanced professional 3D printer – built around the Continuous Fiber Reinforcement (CFR) process to reliably produce strong parts for you.

A hardened extrusion system enables the Markforged Onyx Pro to print Onyx — a micro carbon fiber-filled nylon filament that destroys traditional extrusion systems — reliably over thousands of print hours. The machine is designed for easy operation and maintenance, with features like easy-to-reach wear components and the print bed that can be removed and replaced with 10 μm repeatability.

In addition to more common FFF features, the Onyx has a 2nd-generation fiber reinforcement system that lets you lay down continuous Fiberglass into parts. Markforged composite printers can print continuous fiber-reinforced parts, replacing machined aluminum in the application.
