Passive House Design: A Path to Energy Efficiency

Passive House Design and AutoCAD

Have you ever wondered how it would feel to live in a home that requires minimal energy for heating and cooling while maintaining a comfortable indoor environment all year? Passive House design offers precisely that. A sustainable and energy-efficient approach to building that emphasizes reducing energy consumption without sacrificing comfort.

In this article, we’ll learn about Passive House design, its components, and its benefits. We’ll also address some misconceptions.

Understanding Passive House Building Standards

Passive House Standards, established by the Passive House Institute (PHI), are rigorous and internationally recognized criteria. They aim to create buildings that excel in energy efficiency, comfort, and environmental sustainability. The concept originated in Germany in the late 1980s and has since gained widespread adoption across the globe.

Passive House design focuses on creating a comfortable indoor environment without relying too much on heating or cooling systems. The goal is to significantly reduce the energy consumption of buildings while providing superior indoor air quality and thermal comfort.

To achieve Passive House certification, buildings must meet specific performance targets and energy efficiency criteria. The key elements of these standards include:

  1. Thermal Insulation: Passive Houses emphasize high insulation levels in walls, roofs, and floors. This ensures the building envelope minimizes heat loss during colder and heat gain during warmer months.
  2. Airtightness: Buildings seeking Passive House certification must have an airtight envelope. This means minimizing air leakage through cracks and gaps. Airtightness prevents unwanted heat transfer and ensures that the indoor environment remains comfortable.
  3. High-Performance Windows and Doors: Passive House designs incorporate triple-glazed windows and well-insulated doors. These reduce heat loss and optimize solar gain, thus enhancing energy efficiency.
  4. Ventilation with Heat Recovery: While the building is airtight, it also requires a controlled ventilation system with heat recovery. This ensures a constant supply of fresh air while efficiently recovering heat from the outgoing air, minimizing energy waste.
  5. Energy-Efficient Heating and Cooling Systems: Passive Houses use highly efficient mechanical systems for heating and cooling. These systems need very little energy so that they can be smaller and simpler than those in regular buildings.
  6. Passive Solar Design: Passive House designs use passive solar strategies. This design optimizes natural heat gain from the sun during the winter and minimizes it during the summer. In turn, it reduces the need for active heating and cooling.
  7. Efficient Lighting and Appliances: Designs use energy-efficient lighting fixtures and appliances, reducing the building’s overall energy consumption.

Adhering to these stringent standards enables homeowners and occupants to enjoy numerous benefits. Passive Houses boast significantly reduced energy bills due to their minimal energy requirements.

Moreover, they have a smaller carbon footprint, contributing to global efforts to combat climate change and reduce greenhouse gas emissions. The improved indoor air quality ensures a healthier and more comfortable living environment.

Passive House Standards set high-performance benchmarks and can adapt to various climatic conditions and building types. As the movement gains momentum, architects, engineers, and builders constantly innovate and push the boundaries of sustainable construction. They aim to create more energy-efficient and environmentally responsible structures.

The Five Key Components

Five fundamental components create a Passive House, each playing a crucial role in energy efficiency.

  1. Superinsulated Envelopes: Passive Houses have a highly insulated building envelope that reduces the need for heating and cooling.
  2. Airtight Construction: Passive House buildings require high airtightness to prevent heat loss and save energy.
  3. High-Performance Glazing: Passive House design uses high-performance windows and doors to reduce heat transfer and optimize energy efficiency.
  4. Thermal-Bridge-Free Detailing: Thermal bridges in buildings allow heat to escape or enter, causing energy inefficiencies. Passive House design reduces thermal bridging to improve energy performance and minimize condensation risks.
  5. Heat Recovery Ventilation: Passive House design uses heat recovery ventilation to maintain fresh air. This reduces the need for heating or cooling, improving energy efficiency and comfort.

The Role of Orientation and Shading in Passive House Design

The positioning of a Passive House with the sun, known as orientation, significantly impacts its overall energy performance. By strategically placing windows and shading devices, homeowners can maximize solar gain in the winter while minimizing it in the summer. This smart approach to orientation and shading helps regulate indoor temperatures and reduces the need for artificial heating and cooling.

Passive House Heating and Cooling Solutions

Passive Houses utilize innovative heating and cooling solutions to maintain a comfortable climate without excessive energy consumption. These solutions include solar panels for harnessing renewable energy, geothermal systems for efficient heating, and biomass for sustainable energy generation. Cooling strategies often involve natural ventilation and earth tubes, minimizing reliance on conventional air conditioning.

Ventilation and Indoor Air Quality in Passive Houses

While designers create Passive Houses to be airtight and reduce heat loss, this does not mean they compromise indoor air quality. The HRV system in Passive Houses ensures a continuous fresh air flow while recovering heat from the outgoing air. Occupants can further enhance indoor air quality by employing air filters and purifiers.

Passive House Windows and Doors Selection

Windows and doors are critical components of Passive House design, as they can significantly impact a building’s energy performance. Triple glazing and low-emissivity (low-E) coatings help reduce heat loss, while airtight seals and proper installation prevent thermal leaks.

Insulation and Thermal Mass in Passive House Design

A well-insulated building is a cornerstone of Passive House design. By using advanced insulation materials with high R-values, Passive Houses can maintain stable indoor temperatures with minimal energy input. Integrating thermal mass into the building’s design also helps regulate temperature fluctuations.

Passive House Lighting and Appliance Considerations

Passive Houses opt for energy-saving lighting options such as LED bulbs to complement the energy-efficient building design. Occupants should choose appliances with low energy consumption and consider implementing smart energy management systems to minimize wastage.

Passive House Design for Different Climates

You can adapt Passive House design principles to suit various climates. In cold climates, the focus is on insulation and harnessing solar gain to keep interiors warm. In hot climates, cooling strategies, and natural ventilation take precedence, while in humid climates, moisture control is of utmost importance.

Challenges and Misconceptions of Passive House Design

Although Passive House offers numerous benefits, there are challenges to consider. Initial construction costs may be higher than conventional buildings, but the long-term energy savings often offset this.

Additionally, retrofitting existing buildings to meet Passive House standards may present technical hurdles. Widespread awareness and understanding of Passive House design can help address misconceptions about its feasibility and effectiveness.

The Future of Design

As the world increasingly embraces sustainable practices, Passive House design will likely gain even more traction. Advancements in building technologies and materials will continue to make Passive House construction more accessible and cost-effective. This trend towards energy efficiency and sustainability holds promise for a greener future.

Steps to Building a Passive House

Embarking on a Passive House project requires collaboration between architects, engineers, and builders. Energy modeling and simulation help fine-tune the design to meet Passive House standards. Attention to detail during construction and rigorous quality control is essential to ensure the building performs as intended.

The Role of AutoCAD

AutoCAD is important in Passive House, giving architects, engineers, and designers accurate 2D and 3D tools for drawings and models. It aids in conceptualizing, visualizing, and documenting Passive House projects, making the design process more efficient and effective. Here are some ways AutoCAD helps in Passive House:

  1. Precise 2D Drafting: AutoCAD creates detailed 2D floor plans and construction drawings that meet Passive House standards.
  2. 3D Modeling: AutoCAD’s 3D modeling helps designers create and visualize the design, identifying flaws and optimization opportunities.
  3. BIM Integration: AutoCAD can integrate with BIM software like Revit, allowing collaboration and coordination among project stakeholders.
  4. Energy Analysis: AutoCAD can be used with other software to prepare data for energy simulation and evaluate building energy performance.
  5. Material and Component Libraries: AutoCAD provides access to libraries of building elements, simplifying design and ensuring accurate representation of Passive House components.

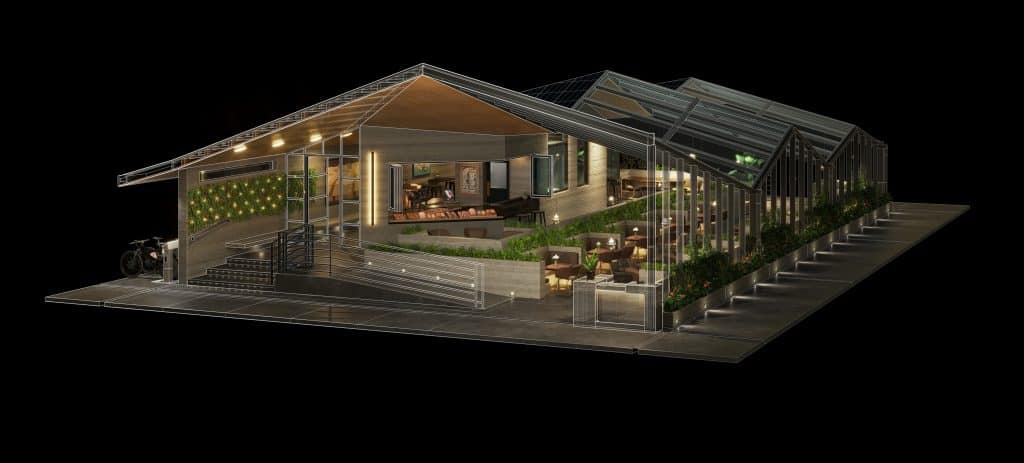

  6. Visualization and Rendering: AutoCAD’s rendering capabilities help designers create realistic visualizations of the Passive House, showcasing its energy-efficient features.
  7. Documentation and Annotation: AutoCAD allows for easy documentation of Passive House design by adding text, dimensions, and annotations to drawings, ensuring accurate implementation.
  8. Collaboration and File Exchange: AutoCAD’s compatibility with different file formats enables easy collaboration and communication with other design professionals and contractors.

AutoCAD in Passive House design improves workflow, accuracy, and communication to create sustainable and comfortable buildings.

AutoCAD

Conclusion

Passive House design offers a remarkable opportunity to revolutionize how we build and live. By prioritizing energy efficiency and sustainability, Passive Houses can significantly reduce our carbon footprint while providing a comfortable and healthy living environment for occupants. Embracing Passive House design means embracing a brighter, greener future for future generations.
